Q 1) What is mean by Data Warehouse?
Ans:--Data Warehouse Intelligence is a term to describe a system used in an organization to collect data, most of which are transactional data, such as purchase records and etc., from one or more data sources, such as the database of a transactional system, into a central data location, the Data Warehouse, and later report those data, generally in an aggregated way, to business users in the organization. This system generally consists of an ETL tool, a Database, a Reporting tool and other facilitating tools, such as a Data Modeling tool.
A data warehouse (DW) is a database used for reporting. The data is offloaded from the operational systems for reporting. The data may pass through an operational data store for additional operations before it is used in the DW for reporting.
A data warehouse maintains its functions in three layers: staging, integration, and access. Staging is used to store raw data for use by developers (analysis and support). The integration layer is used to integrate data and to have a level of abstraction from users. The access layer is for getting data out for users.
This definition of the data warehouse focuses on data storage. The main source of the data is cleaned, transformed, catalogued and made available for use by managers and other business professionals for data mining, online analytical processing, market research and decision support (Marakas & OBrien 2009). However, the means to retrieve and analyze data, to extract, transform and load data, and to manage the data dictionary are also considered essential components of a data warehousing system. Many references to data warehousing use this broader context. Thus, an expanded definition for data warehousing includes business intelligence tools, tools to extract, transform and load data into the repository, and tools to manage and retrieve metadata.
About data-warehouse Evolution & Its Methodology.?
ArchitectureOperational database layer
The source data for the data warehouse — An organization's Enterprise Resource Planning systems fall into this layer.
Data access layer
The interface between the operational and informational access layer — Tools to extract, transform, load data into the warehouse fall into this layer.
Metadata layer
The data dictionary — This is usually more detailed than an operational system data dictionary. There are dictionaries for the entire warehouse and sometimes dictionaries for the data that can be accessed by a particular reporting and analysis tool.
Informational access layer
The data accessed for reporting and analyzing and the tools for reporting and analyzing data — This is also called the data mart. Business intelligence tools fall into this layer. The Inmon-Kimball differences about design methodology, discussed later in this article, have to do with this layer
Conforming informationAnother important fact in designing a data warehouse is which data to conform and how to conform the data. For example, one operational system feeding data into the data warehouse may use "M" and "F" to denote sex of an employee while another operational system may use "Male" and "Female". Though this is a simple example, much of the work in implementing a data warehouse is devoted to making similar meaning data consistent when they are stored in the data warehouse. Typically, extract, transform, load tools are used in this work.
Master data management has the aim of conforming data that could be considered "dimensions".
Normalized versus dimensional approach for storage of dataThere are two leading approaches to storing data in a data warehouse — the dimensional approach and the normalized approach. The dimensional approach, whose supporters are referred to as “Kimballites”, believe in Ralph Kimball’s approach in which it is stated that the data warehouse should be modeled using a Dimensional Model/star schema. The normalized approach, also called the 3NF model, whose supporters are referred to as “Inmonites”, believe in Bill Inmon's approach in which it is stated that the data warehouse should be modeled using an E-R model/normalized model.
In a dimensional approach, transaction data are partitioned into either "facts", which are generally numeric transaction data, or "dimensions", which are the reference information that gives context to the facts. For example, a sales transaction can be broken up into facts such as the number of products ordered and the price paid for the products, and into dimensions such as order date, customer name, product number, order ship-to and bill-to locations, and salesperson responsible for receiving the order.
A key advantage of a dimensional approach is that the data warehouse is easier for the user to understand and to use. Also, the retrieval of data from the data warehouse tends to operate very quickly. “make everything as simple as possible, but not simpler” (Albert Einstein). Dimensional structures are easy to understand for business users. This is because of the fact that the structure is divided into measurements/facts and context/dimensions. Facts are related to the organization’s business processes and operational system whereas the dimensions surrounding them contain context about the measurement (Kimball, Ralph 2008).
The main disadvantages of the dimensional approach are:
1.In order to maintain the integrity of facts and dimensions, loading the data warehouse with data from different operational systems is complicated, and
2.It is difficult to modify the data warehouse structure if the organization adopting the dimensional approach changes the way in which it does business.
In the normalized approach, the data in the data warehouse are stored following, to a degree, database normalization rules. Tables are grouped together by subject areas that reflect general data categories (e.g., data on customers, products, finance, etc.).the normalized structure divides data into entities, which creates several tables in a relational database. When applied in large enterprises the result is dozens of tables that are linked together by a web of joints. Furthermore, each of the created entities is converted into separate physical tables when the database is implemented (Kimball, Ralph 2008). The main advantage of this approach is that it is straightforward to add information into the database. A disadvantage of this approach is that, because of the number of tables involved, it can be difficult for users both to:
1.join data from different sources into meaningful information and then
2.access the information without a precise understanding of the sources of data and of the data structure of the data warehouse.
It should be noted that both normalized – and dimensional models can be represented in entity-relationship diagrams as both contain jointed relational tables. The difference between the two models is the degree of normalization.
These approaches are not mutually exclusive, and there are other approaches. Dimensional approaches can involve normalizing data to a degree (Kimball, Ralph 2008).
Top-down versus bottom-up design methodologies[edit] Bottom-up designRalph Kimball, a well-known author on data warehousing,[3] is a proponent of an approach to data warehouse design which he describes as bottom-up.[4]
In the bottom-up approach data marts are first created to provide reporting and analytical capabilities for specific business processes. Though it is important to note that in Kimball methodology, the bottom-up process is the result of an initial business oriented Top-down analysis of the relevant business processes to be modelled.
Data marts contain, primarily, dimensions and facts. Facts can contain either atomic data and, if necessary, summarized data. The single data mart often models a specific business area such as "Sales" or "Production." These data marts can eventually be integrated to create a comprehensive data warehouse. The integration of data marts is managed through the implementation of what Kimball calls "a data warehouse bus architecture".[5] The data warehouse bus architecture is primarily an implementation of "the bus" a collection of conformed dimensions, which are dimensions that are shared (in a specific way) between facts in two or more data marts.
The integration of the data marts in the data warehouse is centered on the conformed dimensions (residing in "the bus") that define the possible integration "points" between data marts. The actual integration of two or more data marts is then done by a process known as "Drill across". A drill-across works by grouping (summarizing) the data along the keys of the (shared) conformed dimensions of each fact participating in the "drill across" followed by a join on the keys of these grouped (summarized) facts.
Maintaining tight management over the data warehouse bus architecture is fundamental to maintaining the integrity of the data warehouse. The most important management task is making sure dimensions among data marts are consistent. In Kimball's words, this means that the dimensions "conform".
Some consider it an advantage of the Kimball method, that the data warehouse ends up being "segmented" into a number of logically self contained (up to and including The Bus) and consistent data marts, rather than a big and often complex centralized model. Business value can be returned as quickly as the first data marts can be created, and the method gives itself well to an exploratory and iterative approach to building data warehouses. For example, the data warehousing effort might start in the "Sales" department, by building a Sales-data mart. Upon completion of the Sales-data mart, The business might then decide to expand the warehousing activities into the, say, "Production department" resulting in a Production data mart. The requirement for the Sales data mart and the Production data mart to be integrable, is that they share the same "Bus", that will be, that the data warehousing team has made the effort to identify and implement the conformed dimensions in the bus, and that the individual data marts links that information from the bus. Note that this does not require 100% awareness from the onset of the data warehousing effort, no master plan is required upfront. The Sales-data mart is good as it is (assuming that the bus is complete) and the production data mart can be constructed virtually independent of the sales data mart (but not independent of the Bus).
If integration via the bus is achieved, the data warehouse, through its two data marts, will not only be able to deliver the specific information that the individual data marts are designed to do, in this example either "Sales" or "Production" information, but can deliver integrated Sales-Production information, which, often, is of critical business value. An integration (possibly) achieved in a flexible and iterative fashion.
Top-down designBill Inmon, one of the first authors on the subject of data warehousing, has defined a data warehouse as a centralized repository for the entire enterprise.[5] Inmon is one of the leading proponents of the top-down approach to data warehouse design, in which the data warehouse is designed using a normalized enterprise data model. "Atomic" data, that is, data at the lowest level of detail, are stored in the data warehouse. Dimensional data marts containing data needed for specific business processes or specific departments are created from the data warehouse. In the Inmon vision the data warehouse is at the center of the "Corporate Information Factory" (CIF), which provides a logical framework for delivering business intelligence (BI) and business management capabilities.
Inmon states that the data warehouse is:
Subject-oriented
The data in the data warehouse is organized so that all the data elements relating to the same real-world event or object are linked together.
Non-volatile
Data in the data warehouse are never over-written or deleted — once committed, the data are static, read-only, and retained for future reporting.
Integrated
The data warehouse contains data from most or all of an organization's operational systems and these data are made consistent.
Time-variant
The top-down design methodology generates highly consistent dimensional views of data across data marts since all data marts are loaded from the centralized repository. Top-down design has also proven to be robust against business changes. Generating new dimensional data marts against the data stored in the data warehouse is a relatively simple task. The main disadvantage to the top-down methodology is that it represents a very large project with a very broad scope. The up-front cost for implementing a data warehouse using the top-down methodology is significant, and the duration of time from the start of project to the point that end users experience initial benefits can be substantial. In addition, the top-down methodology can be inflexible and unresponsive to changing departmental needs during the implementation phases.[5]
Hybrid designData warehouse (DW) solutions often resemble hub and spoke architecture. Legacy systems feeding the DW/BI solution often include customer relationship management (CRM) and enterprise resource planning solutions (ERP), generating large amounts of data. To consolidate these various data models, and facilitate the extract transform load (ETL) process, DW solutions often make use of an operational data store (ODS). The information from the ODS is then parsed into the actual DW. To reduce data redundancy, larger systems will often store the data in a normalized way. Data marts for specific reports can then be built on top of the DW solution.
It is important to note that the DW database in a hybrid solution is kept on third normal form to eliminate data redundancy. A normal relational database however, is not efficient for business intelligence reports where dimensional modelling is prevalent. Small data marts can shop for data from the consolidated warehouse and use the filtered, specific data for the fact tables and dimensions required. The DW effectively provides a single source of information from which the data marts can read from, creating a highly flexible solution from a BI point of view. The hybrid architecture allows a DW to be replaced with a master data management solution where operational, not static information could reside.
The Data Vault Modeling components follow hub and spoke architecture. This modeling style is a hybrid design, consisting of the best of breed practices from both 3rd normal form and star schema. The Data Vault model is not a true 3rd normal form, and breaks some of the rules that 3NF dictates be followed. It is however, a top-down architecture with a bottom up design. The Data Vault model is geared to be strictly a data warehouse. It is not geared to be end-user accessible, which when built, still requires the use of a data mart or star schema based release area for business purposes.
Data warehouses versus operational systemsOperational systems are optimized for preservation of data integrity and speed of recording of business transactions through use of database normalization and an entity-relationship model. Operational system designers generally follow the Codd rules of database normalization in order to ensure data integrity. Codd defined five increasingly stringent rules of normalization.Fully normalized database designs (that is, those satisfying all five Codd rules) often result in information from a business transaction being stored in dozens to hundreds of tables. Relational databases are efficient at managing the relationships between these tables. The databases have very fast insert/update performance because only a small amount of data in those tables is affected each time a transaction is processed. Finally, in order to improve performance, older data are usually periodically purged from operational systems.
Data warehouses are optimized for speed of data analysis. Frequently data in data warehouses are denormalised via a dimension-based model. Also, to speed data retrieval, data warehouse data are often stored multiple times—in their most granular form and in summarized forms called aggregates. Data warehouse data are gathered from the operational systems and held in the data warehouse even after the data has been purged from the operational systems.
Evolution in organization useThese terms refer to the level of sophistication of a data warehouse:
Offline operational data warehouse
Data warehouses in this initial stage are developed by simply copying the data off of an operational system to another server where the processing load of reporting against the copied data does not impact the operational system's performance.
Offline data warehouse
Data warehouses at this stage are updated from data in the operational systems on a regular basis and the data warehouse data are stored in a data structure designed to facilitate reporting.
Real-time data warehouse
Data warehouses at this stage are updated every time an operational system performs a transaction (e.g. an order or a delivery or a booking).
Integrated data warehouse
These data warehouses assemble data from different areas of business, so users can look up the information they need across other systems.
Q ) Benefits of Data-warehouse?
Ans:-
BenefitsSome of the benefits that a data warehouse provides are as follows:-
A data warehouse provides a common data model for all data of interest regardless of the data's source. This makes it easier to report and analyze information than it would be if multiple data models were used to retrieve information such as sales invoices, order receipts, general ledger charges, etc.
Prior to loading data into the data warehouse, inconsistencies are identified and resolved. This greatly simplifies reporting and analysis.
Information in the data warehouse is under the control of data warehouse users so that, even if the source system data are purged over time, the information in the warehouse can be stored safely for extended periods of time.
Because they are separate from operational systems, data warehouses provide retrieval of data without slowing down operational systems.
Data warehouses can work in conjunction with and, hence, enhance the value of operational business applications, notably customer relationship management (CRM) systems.
Data warehouses facilitate decision support system applications such as trend reports (e.g., the items with the most sales in a particular area within the last two years), exception reports, and reports that show actual performance versus goals.
Data warehouses can record historical information for data source tables that are not set up to save an update history.
Sample applicationsSome of the applications data warehousing can be used for are:
Decision support
Trend analysis
Financial forecasting
Churn Prediction for Telecom subscribers, Credit Card users etc.
Insurance fraud analysis
Call record analysis
Logistics and Inventory management
Agriculture [9]
FutureData warehousing, like any technology, has a history of innovations that did not receive market acceptance.[10]
A 2009 Gartner Group paper predicted these developments in business intelligence/data warehousing market.[11]
Because of lack of information, processes, and tools, through 2012, more than 35 percent of the top 5,000 global companies will regularly fail to make insightful decisions about significant changes in their business and markets.
By 2012, business units will control at least 40 percent of the total budget for business intelligence.[citation needed]
By 2010, 20 percent of organizations will have an industry-specific analytic application delivered via software as a service as a standard component of their business intelligence portfolio.
In 2009, collaborative decision making will emerge as a new product category that combines social software with business intelligence platform capabilities.
By 2012, one-third of analytic applications applied to business processes will be delivered through coarse-grained application mashups.
Q) Difference Betn Data Warehouse & Database ?
Ans:-In this blog we will start with the basics on the data side and then move on to reporting, modeling, and data-mining. A good Data Warehouse is the first step towards a sustainable analytics initiative, and unfortunately this is where most projects end up going wrong. Some of these posts are lifted from another blog of mine, and they serve to set the perspective and the base that further work would be built upon.
So how is a data warehouse different from you regular database? After all, both are databases, and both have some tables containing data. If you look deeper, you'd find that both have indexes, keys, views, and the regular jing-bang. So is that 'Data warehouse' really different from the tables in you application? And if the two aren't really different, maybe you can just run your queries and reports directly from your application databases!
Well, to be fair, that may be just what you are doing right now, running some EOD (end-of-day) reports as complex SQL queries and shipping them off to those who need them. And this scheme might just be serving you fine right now. Nothing wrong with that if it works for you.
But before you start patting yourself on the back for having avoided a data warehouse altogether, do spend a moment to understand the differences, and to appreciate the pros and cons of either approach.
The primary difference betwen you application database and a data warehouse is that while the former is designed (and optimized) to record , the latter has to be designed (and optimized) to respond to analysis questions that are critical for your business.
Application databases are OLTP (On-Line Transaction Processing) systems where every transaction has to be recorded, and super-fast at that. Consider the scenario where a bank ATM has disbursed cash to a customer but was unable to record this event in the bank records. If this started happening frequently, the bank wouldn't stay in business for too long. So the banking system is designed to make sure that every trasaction gets recorded within the time you stand before the ATM machine. This system is write-optimized, and you shouldn't crib if your analysis query (read operation) takes a lot of time on such a system.
A Data Warehouse (DW) on the other end, is a database (yes, you are right, it's a database) that is designed for facilitating querying and analysis. Often designed as OLAP (On-Line Analytical Processing) systems, these databases contain read-only data that can be queried and analysed far more efficiently as compared to your regular OLTP application databases. In this sense an OLAP system is designed to be read-optimized.
Separation from your application database also ensures that your business intelligence solution is scalable (your bank and ATMs don't go down just because the CFO asked for a report), better documented and managed (god help the novice who is given the application database diagrams and asked to locate the needle of data in the proverbial haystack of table proliferation), and can answer questions far more efficietly and frequently.
Creation of a DW leads to a direct increase in quality of analyses as the table structures are simpler (you keep only the needed information in simpler tables), standardized (well-documented table structures), and often denormalized (to reduce the linkages between tables and the corresponding complexity of queries). A DW drastically reduces the 'cost-per-analysis' and thus permits more analysis per FTE. Having a well-designed DW is the foundation successful BI/Analytics initiatives are built upon.
If you are still running your reports off the main application database, answer this simple question: Would the solution still work next year with 20% more customers, 50% more business, 70% more users, and 300% more reports? What about the year after next? If you are sure that your solution will run without any changes, great!! However, if you have already budgeted to buy new state-of-the-art hardware and 25 new Oracle licenses with those partition-options, and the 33 other cool-sounding features, good luck to you. (You can probably send me a ticket to Hawaii, since it's gonna cost you just a minute fraction of your budget)
It's probably simpler and more sensible to create a new DW exclusively for your BI needs. And if you are cash strapped, you could easily do that at extremely low costs by using excellent open source databases like MySQL.
Q Explain the Architecture of Data warehouse?
Ans:-

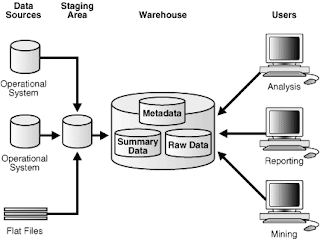

The above Duagram Represent the Differnt Componenet Explain in Details as follow....
ExtractThe first part of an ETL process involves extracting the data from the source systems.
ETL Architecture PatternMost data warehousing projects consolidate data from different source systems. Each separate system may also use a different data organization/format. Common data source formats are relational databases and flat files, but may include non-relational database structures such as Information Management System (IMS) or other data structures such as Virtual Storage Access Method (VSAM) or Indexed Sequential Access Method (ISAM), or even fetching from outside sources such as through web spidering or screen-scraping. The streaming of the extracted data source and load on-the-fly to the destination database is another way of performing ETL when no intermediate data storage is required. In general, the goal of the extraction phase is to convert the data into a single format which is appropriate for transformation processing.
An intrinsic part of the extraction involves the parsing of extracted data, resulting in a check if the data meets an expected pattern or structure. If not, the data may be rejected entirely or in part.
[edit] TransformThe transform stage applies a series of rules or functions to the extracted data from the source to derive the data for loading into the end target. Some data sources will require very little or even no manipulation of data. In other cases, one or more of the following transformation types may be required to meet the business and technical needs of the target database:
Selecting only certain columns to load (or selecting null columns not to load). For example, if the source data has three columns (also called attributes) say roll_no, age and salary then the extraction may take only roll_no and salary. Similarly, the extraction mechanism may ignore all those records where salary is not present (salary = null).
Translating coded values (e.g., if the source system stores 1 for male and 2 for female, but the warehouse stores M for male and F for female), this calls for automated data cleansing; no manual cleansing occurs during ETL
Encoding free-form values (e.g., mapping "Male" to "1" and "Mr" to M)
Deriving a new calculated value (e.g., sale_amount = qty * unit_price)
Sorting
Joining data from multiple sources (e.g., lookup, merge)
Aggregation (for example, rollup — summarizing multiple rows of data — total sales for each store, and for each region, etc.)
Generating surrogate-key values
Transposing or pivoting (turning multiple columns into multiple rows or vice versa)
Splitting a column into multiple columns (e.g., putting a comma-separated list specified as a string in one column as individual values in different columns)
Disaggregation of repeating columns into a separate detail table (e.g., moving a series of addresses in one record into single addresses in a set of records in a linked address table)
Lookup and validate the relevant data from tables or referential files for slowly changing dimensions.
Applying any form of simple or complex data validation. If validation fails, it may result in a full, partial or no rejection of the data, and thus none, some or all the data is handed over to the next step, depending on the rule design and exception handling. Many of the above transformations may result in exceptions, for example, when a code translation parses an unknown code in the extracted data.
[edit] LoadThe load phase loads the data into the end target, usually the data warehouse (DW). Depending on the requirements of the organization, this process varies widely. Some data warehouses may overwrite existing information with cumulative information, frequently updating extract data is done on daily, weekly or monthly basis. Other DW (or even other parts of the same DW) may add new data in a historicized form, for example, hourly. To understand this, consider a DW that is required to maintain sales records of the last year. Then, the DW will overwrite any data that is older than a year with newer data. However, the entry of data for any one year window will be made in a historicized manner. The timing and scope to replace or append are strategic design choices dependent on the time available and the business needs. More complex systems can maintain a history and audit trail of all changes to the data loaded in the DW.
As the load phase interacts with a database, the constraints defined in the database schema — as well as in triggers activated upon data load — apply (for example, uniqueness, referential integrity, mandatory fields), which also contribute to the overall data quality performance of the ETL process.
For example, a financial institution might have information on a customer in several departments and each department might have that customer's information listed in a different way. The membership department might list the customer by name, whereas the accounting department might list the customer by number. ETL can bundle all this data and consolidate it into a uniform presentation, such as for storing in a database or data warehouse.
Another way that companies use ETL is to move information to another application permanently. For instance, the new application might use another database vendor and most likely a very different database schema. ETL can be used to transform the data into a format suitable for the new application to use.
[edit] Real-life ETL cycleThe typical real-life ETL cycle consists of the following execution steps:
1.Cycle initiation
2.Build reference data
3.Extract (from sources)
4.Validate
5.Transform (clean, apply business rules, check for data integrity, create aggregates or disaggregates)
6.Stage (load into staging tables, if used)
7.Audit reports (for example, on compliance with business rules. Also, in case of failure, helps to diagnose/repair)
8.Publish (to target tables)
9.Archive
10.Clean up
[edit] ChallengesETL processes can involve considerable complexity, and significant operational problems can occur with improperly designed ETL systems.
The range of data values or data quality in an operational system may exceed the expectations of designers at the time validation and transformation rules are specified. Data profiling of a source during data analysis can identify the data conditions that will need to be managed by transform rules specifications. This will lead to an amendment of validation rules explicitly and implicitly implemented in the ETL process.
Data warehouses are typically assembled from a variety of data sources with different formats and purposes. As such, ETL is a key process to bring all the data together in a standard, homogenous environment.
Design analysts should establish the scalability of an ETL system across the lifetime of its usage. This includes understanding the volumes of data that will have to be processed within service level agreements. The time available to extract from source systems may change, which may mean the same amount of data may have to be processed in less time. Some ETL systems have to scale to process terabytes of data to update data warehouses with tens of terabytes of data. Increasing volumes of data may require designs that can scale from daily batch to multiple-day microbatch to integration with message queues or real-time change-data capture for continuous transformation and update.
Performance ETL vendors benchmark their record-systems at multiple TB (terabytes) per hour (or ~1 GB per second) using powerful servers with multiple CPUs, multiple hard drives, multiple gigabit-network connections, and lots of memory.
In real life, the slowest part of an ETL process usually occurs in the database load phase. Databases may perform slowly because they have to take care of concurrency, integrity maintenance, and indices. Thus, for better performance, it may make sense to do
Direct Path Extract method or bulk unload whenever is possible (instead of querying the database) to reduce the load on source system while getting high speed extract
most of the transformation processing outside of the database
and to use bulk load operations whenever possible.
Still, even using bulk operations, database access is usually the bottleneck in the ETL process. Some common methods used to increase performance are:
Partition tables (and indices). Try to keep partitions similar in size (watch for null values which can skew the partitioning).
Do all validation in the ETL layer before the load. Disable integrity checking (disable constraint ...) in the target database tables during the load.
Disable triggers (disable trigger ...) in the target database tables during the load. Simulate their effect as a separate step.
Generate IDs in the ETL layer (not in the database).
Drop the indices (on a table or partition) before the load - and recreate them after the load (SQL: drop index ...; create index ...).
Use parallel bulk load when possible — works well when the table is partitioned or there are no indices. Note: attempt to do parallel loads into the same table (partition) usually causes locks — if not on the data rows, then on indices.
If a requirement exists to do insertions, updates, or deletions, find out which rows should be processed in which way in the ETL layer, and then process these three operations in the database separately. You often can do bulk load for inserts, but updates and deletes commonly go through an API (using SQL).
Whether to do certain operations in the database or outside may involve a trade-off. For example, removing duplicates using distinct may be slow in the database; thus, it makes sense to do it outside. On the other side, if using distinct will significantly (x100) decrease the number of rows to be extracted, then it makes sense to remove duplications as early as possible in the database before unloading data.
A common source of problems in ETL is a big number of dependencies among ETL jobs. For example, job "B" cannot start while job "A" is not finished. You can usually achieve better performance by visualizing all processes on a graph, and trying to reduce the graph making maximum use of parallelism, and making "chains" of consecutive processing as short as possible. Again, partitioning of big tables and of their indices can really help.
Another common issue occurs when the data is spread between several databases, and processing is done in those databases sequentially. Sometimes database replication may be involved as a method of copying data between databases - and this can significantly slow down the whole process. The common solution is to reduce the processing graph to only three layers:
Sources
Central ETL layer
Targets
This allows processing to take maximum advantage of parallel processing. For example, if you need to load data into two databases, you can run the loads in parallel (instead of loading into 1st - and then replicating into the 2nd).
Of course, sometimes processing must take place sequentially. For example, you usually need to get dimensional (reference) data before you can get and validate the rows for main "fact" tables.
Parallel processingA recent[update] development in ETL software is the implementation of parallel processing. This has enabled a number of methods to improve overall performance of ETL processes when dealing with large volumes of data.
ETL applications implement three main types of parallelism:
Data: By splitting a single sequential file into smaller data files to provide parallel access.
Pipeline: Allowing the simultaneous running of several components on the same data stream. For example: looking up a value on record 1 at the same time as adding two fields on record 2.
Component: The simultaneous running of multiple processes on different data streams in the same job, for example, sorting one input file while removing duplicates on another file.
All three types of parallelism usually operate combined in a single job.
An additional difficulty comes with making sure that the data being uploaded is relatively consistent. Because multiple source databases may have different update cycles (some may be updated every few minutes, while others may take days or weeks), an ETL system may be required to hold back certain data until all sources are synchronized. Likewise, where a warehouse may have to be reconciled to the contents in a source system or with the general ledger, establishing synchronization and reconciliation points becomes necessary.
Rerunnability, recoverabilityData warehousing procedures usually subdivide a big ETL process into smaller pieces running sequentially or in parallel. To keep track of data flows, it makes sense to tag each data row with "row_id", and tag each piece of the process with "run_id". In case of a failure, having these IDs will help to roll back and rerun the failed piece.
Best practice also calls for "checkpoints", which are states when certain phases of the process are completed. Once at a checkpoint, it is a good idea to write everything to disk, clean out some temporary files, log the state, and so on.
Best practicesFour-layered approach for ETL architecture design
Functional layer: Core functional ETL processing (extract, transform, and load).
Operational management layer: Job-stream definition and management, parameters, scheduling, monitoring, communication and alerting.
Audit, balance and control (ABC) layer: Job-execution statistics, balancing and controls, rejects- and error-handling, codes management.
Utility layer: Common components supporting all other layers.
Use file-based ETL processing where possible
Storage costs relatively little
Intermediate files serve multiple purposes:
Used for testing and debugging
Used for restart and recover processing
Used to calculate control statistics
Helps to reduce dependencies - enables modular programming.
Allows flexibility for job-execution and -scheduling
Better performance if coded properly, and can take advantage of parallel processing capabilities when the need arises.
Use data-driven methods and minimize custom ETL coding
Parameter-driven jobs, functions, and job-control
Code definitions and mapping in database
Consideration for data-driven tables to support more complex code-mappings and business-rule application.
Qualities of a good ETL architecture design
Performance
Scalable
Migratable
Recoverable (run_id, ...)
Operable (completion-codes for phases, re-running from checkpoints, etc.)
Auditable (in two dimensions: business requirements and technical troubleshooting)
Dealing with keysKeys are some of the most important objects in all relational databases as they tie everything together. A primary key is a column which is the identifier for a given entity, where a foreign key is a column in another table which refers a primary key.
These keys can also be made up from several columns, in which case they are composite keys. In many cases the primary key is an auto generated integer which has no meaning for the business entity being represented, but solely exists for the purpose of the relational database - commonly referred to as a surrogate key.
As there will usually be more than one datasource being loaded into the warehouse the keys are an important concern to be addressed.
Your customers might be represented in several data sources, and in one their SSN (Social Security Number) might be the primary key, their phone number in another and a surrogate in the third. All of the customers information needs to be consolidated into one dimension table.
A recommended way to deal with the concern is to add a warehouse surrogate key, which will be used as foreign key from the fact table.[1]
Usually updates will occur to a dimension's source data, which obviously must be reflected in the data warehouse.
If the primary key of the source data is required for reporting, the dimension already contains that piece of information for each row. If the source data uses a surrogate key, the ware house must keep track of it even though it is never used in queries or reports.
That is done by creating a lookup table which contains the warehouse surrogate key and the originating key [2]. This way the dimension is not polluted with surrogates from various source systems, while the ability to update is preserved.
The lookup table is used in different ways depending on the nature of the source data. There are 5 types to consider [3], where three selected ones are included here:
Type 1:
- The dimension row is simply updated to match the current state of the source system. The warehouse does not capture history. The lookup table is used to identify which dimension row to update/overwrite.
Type 2:
- A new dimension row is added with the new state of the source system. A new surrogate key is assigned. Source key is no longer unique in the lookup table.
Fully-logged:
- A new dimension row is added with the new state of the source system, while the previous dimension row is updated to reflect it is no longer active and record time of deactivation.
Work should be put in to guidance on which situations the options apply to. Is that solely a business decision?
Which factors influence the choice? The update strategy might (full wipe, incremental etc.)
ToolsProgrammers can set up ETL processes using almost any programming language, but building such processes from scratch can become complex. Increasingly, companies are buying ETL tools to help in the creation of ETL processes.[citation needed]
By using an established ETL framework, one may increase one's chances of ending up with better connectivity and scalability. A good ETL tool must be able to communicate with the many different relational databases and read the various file formats used throughout an organization. ETL tools have started to migrate into Enterprise Application Integration, or even Enterprise Service Bus, systems that now cover much more than just the extraction, transformation, and loading of data. Many ETL vendors now have data profiling, data quality, and metadata capabilities
Several Concept of Data Warehouse:-
Several concepts are of particular importance to data warehousing. They are discussed in detail in this section.
Dimensional Data Model: Dimensional data model is commonly used in data warehousing systems. This section describes this modeling technique, and the two common schema types, star schema and snowflake schema.
Slowly Changing Dimension: This is a common issue facing data warehousing practioners. This section explains the problem, and describes the three ways of handling this problem with examples.
Conceptual Data Model: What is a conceptual data model, its features, and an example of this type of data model.
Logical Data Model: What is a logical data model, its features, and an example of this type of data model.
Physical Data Model: What is a physical data model, its features, and an example of this type of data model.
Conceptual, Logical, and Physical Data Model: Different levels of abstraction for a data model. This section compares and constrasts the three different types of data models.
Data Integrity: What is data integrity and how it is enforced in data warehousing.
What is OLAP: Definition of OLAP.
MOLAP, ROLAP, and HOLAP: What are these different types of OLAP technology? This section discusses how they are different from the other, and the advantages and disadvantages of each.
Bill Inmon vs. Ralph Kimball: These two data warehousing heavyweights have a different view of the role between data warehouse and data mart.
Design Consideration of Desiging a Data warehouse?
After the tools and team personnel selections are made, the data warehouse design can begin. The following are the typical steps involved in the datawarehousing project cycle.
Requirement Gathering
Physical Environment Setup
Data Modeling
ETL
OLAP Cube Design
Front End Development
Report Development
Performance Tuning
Query Optimization
Quality Assurance
Rolling out to Production
Production Maintenance
Incremental Enhancements
Each page listed above represents a typical data warehouse design phase, and has several sections:
Task Description: This section describes what typically needs to be accomplished during this particular data warehouse design phase.
Time Requirement: A rough estimate of the amount of time this particular data warehouse task takes.
Deliverables: Typically at the end of each data warehouse task, one or more documents are produced that fully describe the steps and results of that particular task. This is especially important for consultants to communicate their results to the clients.
Possible Pitfalls: Things to watch out for. Some of them obvious, some of them not so obvious. All of them are real.
The Additional Observations section contains my own observations on data warehouse processes not included in any of the design
Q ) Explain the History of Data -Warehouse?
Ans:-
History of Data Warehousing
Data Warehouses became a distinct type of computer database during the late 1980s and early 1990s. They were developed to meet a growing demand for management information and analysis that could not be met by operational systems. Operational systems were unable to meet this need for a range of reasons such as The processing load of reporting reduced the response time of the operational systems and Development of reports in operational systems often required writing specific computer programs which was slow and expensive.
As a result, separate computer databases began to be built that were specifically designed to support management information and analysis purposes. These data warehouses were able to bring in data from a range of different data sources, such as mainframe computers, minicomputers, as well as personal computers and office automation software such as spreadsheet, and integrate this information in a single place. This capability, coupled with user-friendly reporting tools and freedom from operational impacts, has led to a growth of this type of computer system.
As technology improved (lower cost for more performance) and user requirements increased (faster data load cycle times and more features), data warehouses have evolved through several fundamental stages:
Offline Operational Databases - Data warehouses in this initial stage are developed by simply copying the database of an operational system to an off-line server where the processing load of reporting does not impact on the operational system's performance.
Offline Data Warehouse - Data warehouses in this stage of evolution are updated on a regular time cycle (usually daily, weekly or monthly) from the operational systems and the data is stored in an integrated reporting-oriented data structure.
Real Time Data Warehouse - Data warehouses at this stage are updated on a transaction or event basis, every time an operational system performs a transaction (e.g. an order or a delivery or a booking etc.)
Integrated Data Warehouse - Data warehouses at this stage are used to generate activity or transactions that are passed back into the operational systems for use in the daily activity of the organization.
Q) Why Pre-Prpocess a Data Before Loading?
Ans:-Data preprocessing describes any type of processing performed on raw data to prepare it for another processing procedure. Commonly used as a preliminary data mining practice, data preprocessing transforms the data into a format that will be more easily and effectively processed for the purpose of the user -- for example, in a neural network. There are a number of different tools and methods used for preprocessing, including: sampling, which selects
a representative subset from a large population of data; transformation, which manipulates raw data to produce a single input; denoising, which removes noise from data; normalization, which organizes data for more efficient access; and feature extraction, which pulls out specified data that is significant in some particular context.
In a customer relationship management (CRM) context, data preprocessing is a component of Web mining. Web usage logs may be preprocessed to extract meaningful sets of data called user transactions, which consist of groups of URL references. User sessions may be tracked to identify the user, the Web sites requested and their order, and the length of time spent on each one. Once these have been pulled out of the raw data, they yield more useful information that can be put to the user's purposes, such as consumer research, marketing, or personalization.
Q Data Transformation In data Warehouse?
Ans:-
Overview of Loading and Transformation in Data Warehouses
Data transformations are often the most complex and, in terms of processing time, the most costly part of the extraction, transformation, and loading (ETL) process. They can range from simple data conversions to extremely complex data scrubbing techniques. Many, if not all, data transformations can occur within an Oracle database, although transformations are often implemented outside of the database (for example, on flat files) as well.
This chapter introduces techniques for implementing scalable and efficient data transformations within the Oracle Database. The examples in this chapter are relatively simple. Real-world data transformations are often considerably more complex. However, the transformation techniques introduced in this chapter meet the majority of real-world data transformation requirements, often with more scalability and less programming than alternative approaches.
This chapter does not seek to illustrate all of the typical transformations that would be encountered in a data warehouse, but to demonstrate the types of fundamental technology that can be applied to implement these transformations and to provide guidance in how to choose the best techniques.
Transformation Flow
From an architectural perspective, you can transform your data in two ways:
•Multistage Data Transformation
•Pipelined Data Transformation
Multistage Data Transformation
The data transformation logic for most data warehouses consists of multiple steps. For example, in transforming new records to be inserted into a sales table, there may be separate logical transformation steps to validate each dimension key.
Figure 14-1 offers a graphical way of looking at the transformation logic.
Figure 14-1 Multistage Data Transformation
Description of "Figure 14-1 Multistage Data Transformation"
When using Oracle Database as a transformation engine, a common strategy is to implement each transformation as a separate SQL operation and to create a separate, temporary staging table (such as the tables new_sales_step1 and new_sales_step2 in Figure 14-1) to store the incremental results for each step. This load-then-transform strategy also provides a natural checkpointing scheme to the entire transformation process, which enables to the process to be more easily monitored and restarted. However, a disadvantage to multistaging is that the space and time requirements increase.
It may also be possible to combine many simple logical transformations into a single SQL statement or single PL/SQL procedure. Doing so may provide better performance than performing each step independently, but it may also introduce difficulties in modifying, adding, or dropping individual transformations, as well as recovering from failed transformations.
Pipelined Data Transformation
The ETL process flow can be changed dramatically and the database becomes an integral part of the ETL solution.
The new functionality renders some of the former necessary process steps obsolete while some others can be remodeled to enhance the data flow and the data transformation to become more scalable and non-interruptive. The task shifts from serial transform-then-load process (with most of the tasks done outside the database) or load-then-transform process, to an enhanced transform-while-loading.
Oracle offers a wide variety of new capabilities to address all the issues and tasks relevant in an ETL scenario. It is important to understand that the database offers toolkit functionality rather than trying to address a one-size-fits-all solution. The underlying database has to enable the most appropriate ETL process flow for a specific customer need, and not dictate or constrain it from a technical perspective. Figure 14-2 illustrates the new functionality, which is discussed throughout later sections.
Loading Mechanisms
You can use the following mechanisms for loading a data warehouse:
•Loading a Data Warehouse with SQL*Loader
•Loading a Data Warehouse with External Tables
•Loading a Data Warehouse with OCI and Direct-Path APIs
•Loading a Data Warehouse with Export/Import
Loading a Data Warehouse with SQL*Loader
Before any data transformations can occur within the database, the raw data must become accessible for the database. One approach is to load it into the database. Chapter 13, "Transportation in Data Warehouses", discusses several techniques for transporting data to an Oracle data warehouse. Perhaps the most common technique for transporting data is by way of flat files.
SQL*Loader is used to move data from flat files into an Oracle data warehouse. During this data load, SQL*Loader can also be used to implement basic data transformations. When using direct-path SQL*Loader, basic data manipulation, such as datatype conversion and simple NULL handling, can be automatically resolved during the data load. Most data warehouses use direct-path loading for performance reasons.
The conventional-path loader provides broader capabilities for data transformation than a direct-path loader: SQL functions can be applied to any column as those values are being loaded. This provides a rich capability for transformations during the data load. However, the conventional-path loader is slower than direct-path loader. For these reasons, the conventional-path loader should be considered primarily for loading and transforming smaller amounts of data.
The following is a simple example of a SQL*Loader controlfile to load data into the sales table of the sh sample schema from an external file sh_sales.dat. The external flat file sh_sales.dat consists of sales transaction data, aggregated on a daily level. Not all columns of this external file are loaded into sales. This external file will also be used as source for loading the second fact table of the sh sample schema, which is done using an external table:
The following shows the control file (sh_sales.ctl) loading the sales table:
LOAD DATA INFILE sh_sales.dat APPEND INTO TABLE sales
FIELDS TERMINATED BY "
"
(PROD_ID, CUST_ID, TIME_ID, CHANNEL_ID, PROMO_ID, QUANTITY_SOLD, AMOUNT_SOLD)
It can be loaded with the following command:
$ sqlldr sh/sh control=sh_sales.ctl direct=true
